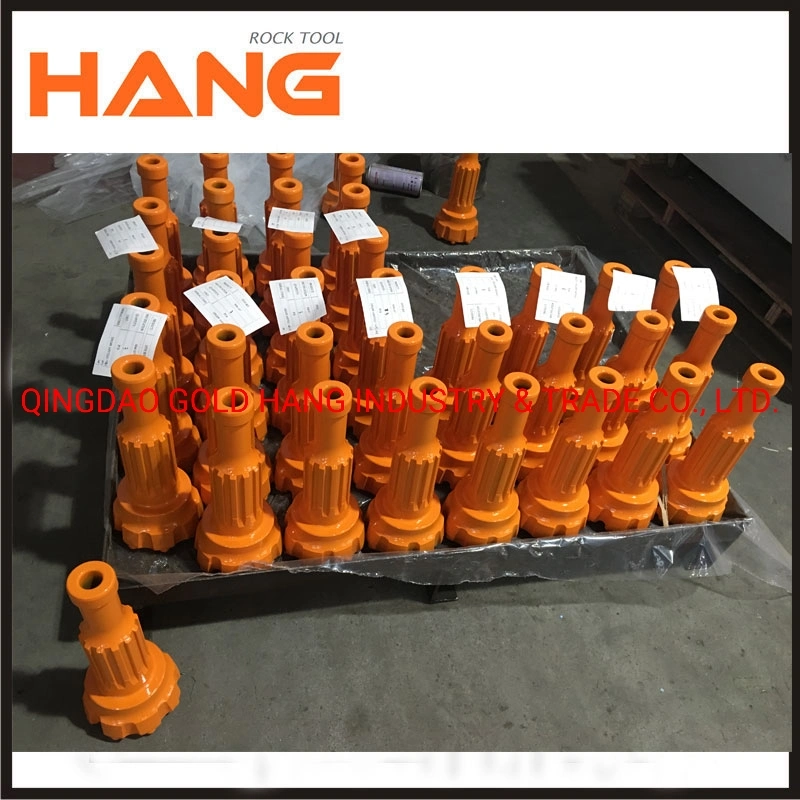

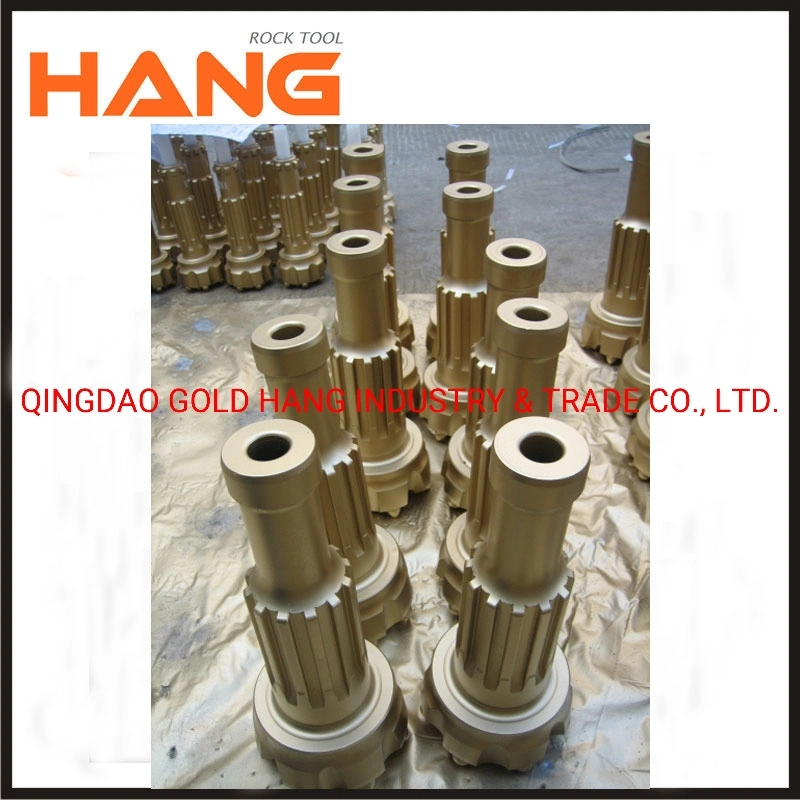

Gold Hang DTH hammer Drilling Rock Button bits
Place of Origin: Shandong, China
Model Number: BR,COP, DHD, SD, QL, MISSION
Machine Type: Drilling Tool
Material: Carbide, PDC buttons
Use: Oil/Gas/Well/Geological Drilling
Usage: High pressure DTH tools
Advantages:
1. More than 15 years PDC research and manufacturing.
2. PDC button DTH bits have excellent wear resistance and impact resistance, can increase drilling footage and improve service life.
Conditions:
Abrasive Condition, Hard Condition
DHT bit size
Our factory
Shipment & package
Plywood case / pallet
Place of Origin: Shandong, China
Model Number: BR,COP, DHD, SD, QL, MISSION
Machine Type: Drilling Tool
Material: Carbide, PDC buttons
Use: Oil/Gas/Well/Geological Drilling
Usage: High pressure DTH tools
Advantages:
1. More than 15 years PDC research and manufacturing.
2. PDC button DTH bits have excellent wear resistance and impact resistance, can increase drilling footage and improve service life.
Conditions:
Abrasive Condition, Hard Condition
DHT bit size
Matched hammer diameter(inch) | Diameter in mm | NO. Air Holes | Gauge PDC Buttons | Front PDC Buttons | Approx. weight | Bit shank |
| 2" | 70 | 2 | 6*φ10 | 4*φ8 | 3.0 kgs | BR2
|
76 | 2 | 6*φ12 | 5*φ10 | 3.6 kgs | ||
| 3" | 90 | 2 | 7*φ12 | 6*φ11 | 4.2 kgs | BR3/BR33/COP32
|
95 | 2 | 6*φ14 | 4*φ13 | 4.5 kgs | ||
100 | 2 | 6*φ14 | 5*φ13 | 5.9 kgs | ||
| 3.5" | 90 | 2 | 6*φ14 | 4*φ13 | 4.9 kgs | DHD3.5
|
95 | 2 | 6*φ14 | 4*φ13 | 5.2 kgs | ||
102 | 2 | 6*φ14 | 5*φ13 | 5.9 kgs | ||
| 4" | 105 | 2 | 7*φ14 | 6*φ13 | 8 kgs | DHD340/COP42/SD4/QL4/M0
|
115 | 2 | 8*φ14 | 7*φ13 | 8.8 kgs | ||
130 | 2 | 8*φ14 | 7*φ13 | 10 kgs |
Our factory
Shipment & package
Plywood case / pallet
1. Professional quality control system
Advanced equipment, International quality certification and experienced worker
Advanced equipment, International quality certification and experienced worker
2. In-time delivery
3 days if in stock; 15-30 days for production
3 days if in stock; 15-30 days for production
3. Good after-service
Full compensation if it occurs that buttons are out, broken and the body broken while button is worn less than 1/3
Full compensation if it occurs that buttons are out, broken and the body broken while button is worn less than 1/3
