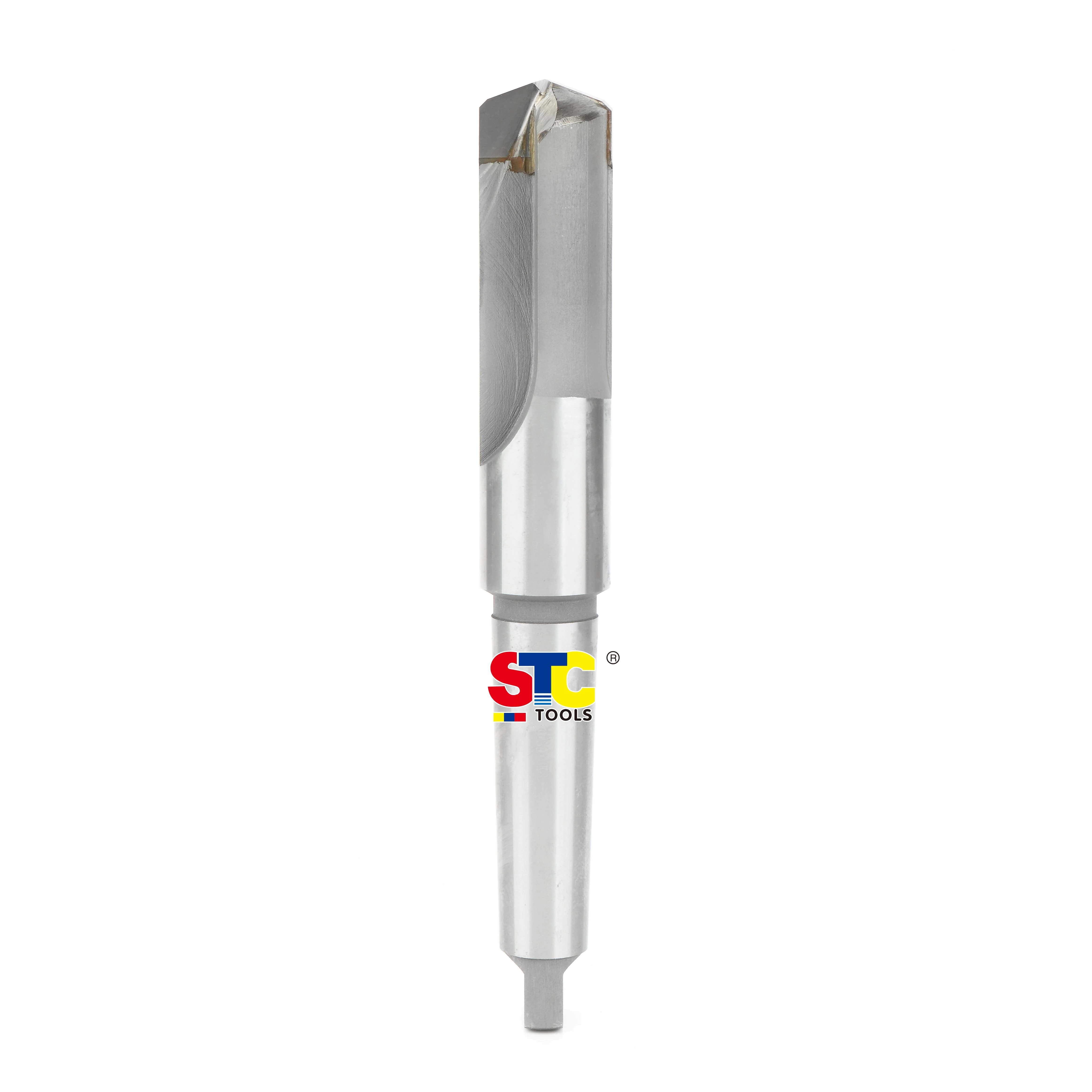

our carbide tipped taper shank drill bits :

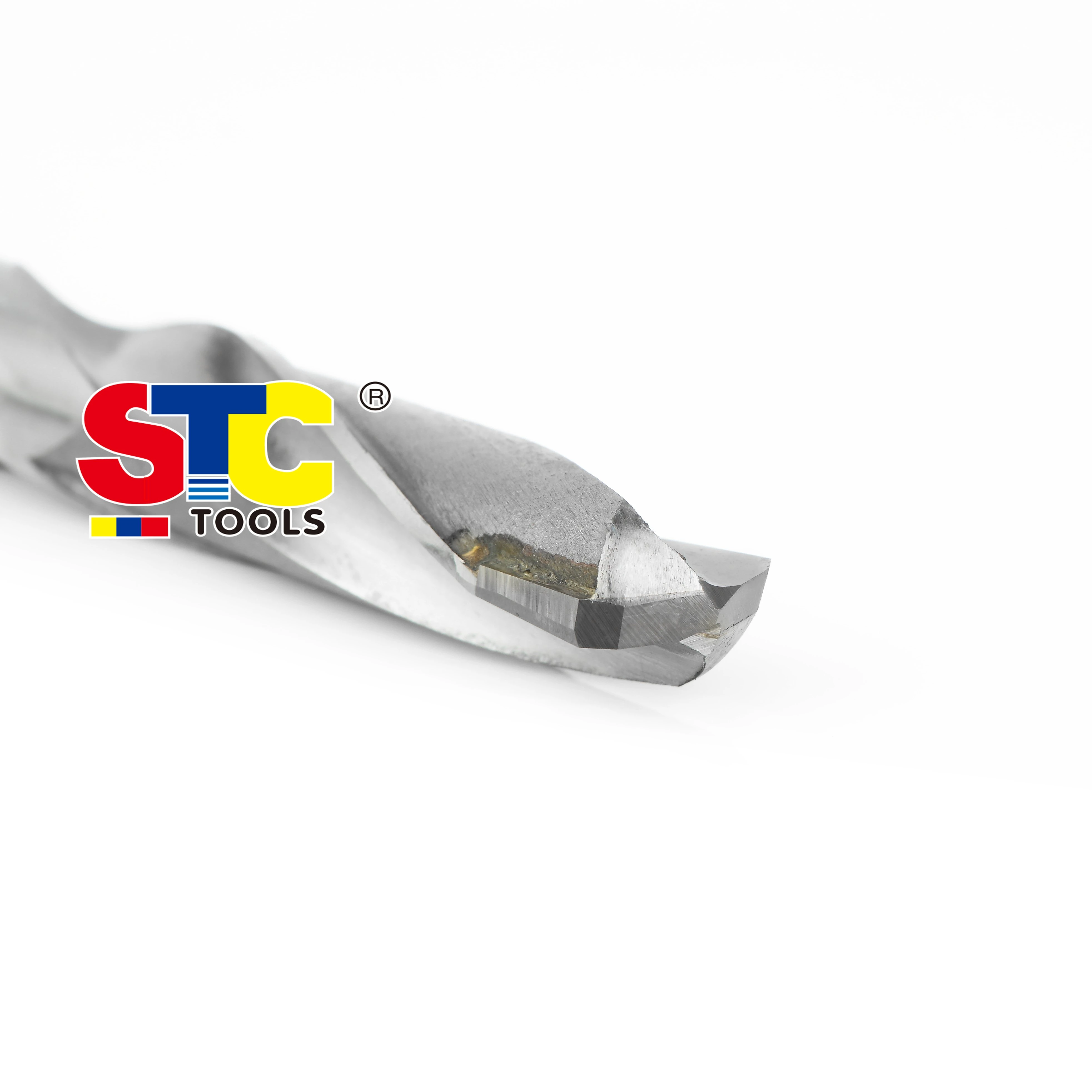

1) carbide tip chosen from super carbide. ideal for cutting cast iron.
2) shank we choose carbon stell , but alloy steel and high speed steel availble on request.
3) special brazed technology makes brazed tip stronger.
1) carbide tip chosen from super carbide. ideal for cutting cast iron.
2) shank we choose carbon stell , but alloy steel and high speed steel availble on request.
3) special brazed technology makes brazed tip stronger.
SHORT TYPE | LONG TYPE | ||||
Size | Flute Length | Overall Length | Flute Length | Overall Length | Morse Taper |
10 | 60 | 140 | 87 | 168 | 1 |
10.2 | 60 | 140 | 87 | 168 | 1 |
10.5 | 60 | 140 | 87 | 168 | 1 |
10.8 | 65 | 145 | 94 | 175 | 1 |
11 | 65 | 145 | 94 | 175 | 1 |
11.2 | 65 | 145 | 94 | 175 | 1 |
11.5 | 65 | 145 | 94 | 175 | 1 |
11.8 | 65 | 145 | 94 | 175 | 1 |
12 | 70 | 170 | 101 | 199 | 2 |
12.5 | 70 | 170 | 101 | 199 | 2 |
12.8 | 70 | 170 | 101 | 199 | 2 |
13 | 70 | 170 | 101 | 199 | 2 |
13.5 | 70 | 170 | 108 | 206 | 2 |
13.8 | 70 | 170 | 108 | 206 | 2 |
14 | 70 | 170 | 108 | 206 | 2 |
14.5 | 75 | 175 | 114 | 212 | 2 |
15 | 75 | 175 | 114 | 212 | 2 |
15.5 | 80 | 180 | 120 | 218 | 2 |
16 | 80 | 180 | 120 | 218 | 2 |
16.5 | 85 | 185 | 125 | 223 | 2 |
17 | 85 | 185 | 125 | 223 | 2 |
17.5 | 90 | 190 | 130 | 228 | 2 |
18 | 90 | 190 | 130 | 228 | 2 |
18.5 | 95 | 215 | 135 | 256 | 3 |
19 | 95 | 215 | 135 | 256 | 3 |
19.5 | 100 | 220 | 140 | 261 | 3 |
20 | 100 | 220 | 140 | 261 | 3 |
20.5 | 105 | 225 | 145 | 266 | 3 |
21 | 105 | 225 | 145 | 266 | 3 |
21.5 | 110 | 230 | 150 | 271 | 3 |
22 | 110 | 230 | 150 | 271 | 3 |
22.5 | 110 | 230 | 155 | 276 | 3 |
23 | 110 | 230 | 155 | 276 | 3 |
23.5 | 110 | 230 | 155 | 276 | 3 |
24 | 115 | 235 | 160 | 281 | 3 |
24.5 | 115 | 235 | 160 | 281 | 3 |
25 | 115 | 235 | 160 | 281 | 3 |
25.5 | 115 | 235 | 165 | 286 | 3 |
26 | 115 | 235 | 165 | 286 | 3 |
26.5 | 115 | 235 | 165 | 286 | 3 |
27 | 120 | 240 | 170 | 291 | 3 |
27.5 | 120 | 270 | 170 | 319 | 4 |
28 | 120 | 270 | 170 | 319 | 4 |
28.5 | 125 | 275 | 175 | 324 | 4 |
29 | 125 | 275 | 175 | 324 | 4 |
29.5 | 125 | 275 | 175 | 324 | 4 |
30 | 125 | 275 | 175 | 324 | 4 |
